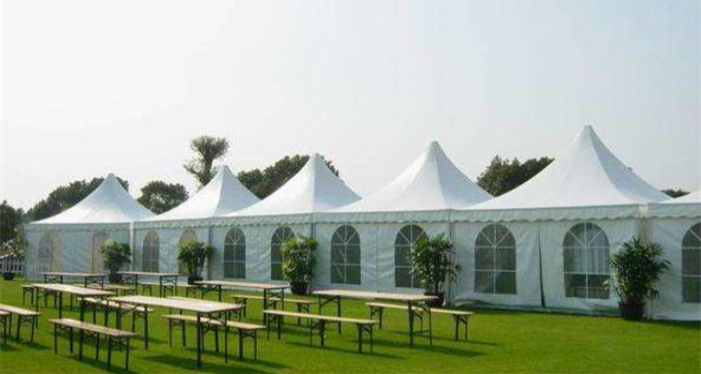

JINDA offers knife coated tent fabrics in different weights and widths for Festival Celebration, Marquees and Private Parties with UV and cold crack resistance. Flame retardant performance of the tent fabrics are treated to reach M2/M3,B1/B2,CSFM/NFPA-701 level according to international standard.
| T9680L | T9780BL | Testing Method | |
|---|---|---|---|
门幅 Width | 250-320 cm 98-126 inch | 250-320 cm 98-126 inch | |
基布 Base Fabric | 100%PES 1100dtex 9*9 | 100%PES 1100dtex 9*9 | DIN EN ISO 2286-3、7211、4602 |
总克重 Composition Fabric | 680 g/m2 20 OZ/YD2 | 780 g/m2 23 OZ/YD2 | DIN EN ISO 2286-2 BS 3424 Method 5B、5A |
基布克重 Composition Fabric 涂层克重 Composition Coating | 200 g/m2 5.9 OZ/YD2 480 g/m2 14.2 OZ/YD2 | 200 g/m2 5.9 OZ/YD2 580 g/m2 17.1 OZ/YD2 | DIN EN ISO 2286-2 BS 3424 Method 5A DIN EN ISO 2286-2 BS 3424 Method 5B |
表处 Lacquering | Acrylic L1/1 | Acrylic Blockout L1/1 | |
抗拉强度（经向） Breaking Strength Warp 抗拉强度（纬向） Breaking Strength Weft | 2800N/5cm 630LBS/2inch 2800N/5cm 630LBS/2inch | 3000N/5cm 675LBS/2inch 3000N/5cm 675LBS/2inch | DIN 53 354 BS 3424 Method FS 5100 DIN 53 354 BS 3424 Method FS 5100 |
| 撕裂强度（经向） Tear Strength Warp 撕裂强度（纬向） Tear Strength Wef | 300N 67LBS 300N 67LBS | 300N 67LBS 300N 67LBS | DIN 53 363 BS 3424 Method FS 5134 DIN 53 363 BS 3424 Method FS 5134 |
剥离强度 Adhesion | 100N/5cm 22.5LBS/2inch | 100N/5cm 22.5LBS/2inch | DIN 53 357 BS 3424 Method 9B FS 5970 |
适用温度 Temperature Resistance | -30℃/+70℃ | -30℃/+70℃ | DIN EN 1876-2 BS 3424 Method 10 FS 5874 |
色牢度 Light Fastness | 7-8 | 7-8 | DIN EN ISO 877 BS 3424 Method 15 |
防火（需定制） Flammability | B1 M2 CL2 | B1 M2 CL2 | DIN 4102 NF P92-507 UNI 8456 8457 |
用途 Application | 帐篷，篷盖材料。 Tent，General Cover. | ||
The above information is for reference only。
以上参数仅供参考。
