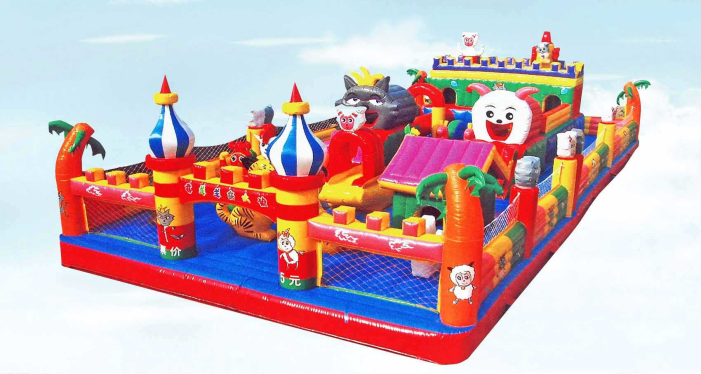

JINDA coated fabrics for inflatable items are characterized by high strength, abrasion and pine hole free. This ultra-high tearing strength fabrics are applied for inflatable bounce, such as air jumps, bouncy castles.
| I6554G | I1861G | Testing Method | |
|---|---|---|---|
门幅 Width | 150-320 cm 59-126 inch | 150 cm 61 inch | |
基布 Base Fabric | 100%PES 1100dtex 6*6 | 100%PES 1100dtex | DIN EN ISO 2060 |
总克重 Composition Fabric | 542 g/m2 16 OZ/YD2 | 610 g/m2 18 OZ/YD2 | DIN EN ISO 2286-2 BS 3424 Method 5A |
基布克重 Composition Fabric 涂层克重 Composition Coating | 200 g/m2 5.9 OZ/YD2 342 g/m2 10.1 OZ/YD2 | 180 g/m2 5.3 OZ/YD2 430 g/m2 12.7 OZ/YD2 | DIN EN ISO 2286-2 BS 3424 Method 5A DIN EN ISO 2286-2 BS 3424 Method 5B |
表处 Lacquering | PVC Gloss | PVC Gloss | |
抗拉强度（经向） Breaking Strength Warp 抗拉强度（纬向） Breaking Strength Weft | 2900N/5cm 653LBS/2inch 2700N/5cm 600LBS/2inch | 2500N/5cm 560LBS/2inch 2200N/5cm 485LBS/2inch | DIN 53 354 BS 3424 Method FS 5100 DIN 53 354 BS 3424 Method FS 5100 |
| 撕裂强度（经向） Tear Strength Warp 撕裂强度（纬向） Tear Strength Wef | 370N 83LBS 400N 90LBS | 373N 85LBS 373N 85LBS | DIN 53 363 BS 3424 Method FS 5134 DIN 53 363 BS 3424 Method FS 5134 |
剥离强度 Adhesion | 100N/5cm 22.5LBS/2inch | 90N/5cm 20LBS/2inch | DIN 53 357 BS 3424 Method 9B FS 5970 |
适用温度 Temperature Resistance | -30℃/+70℃ | -30℃/+70℃ | DIN EN 1876-2 BS 3424 Method 10 FS 5874 |
色牢度 Light Fastness | 7-8 | 7-8 | DIN EN ISO 877 BS 3424 Method 15 |
防火（需定制） Flammability | B1 M2 CL2 | B1 M2 CL2 | DIN 75200 NFPA-701 DIN 4102 |
用途 Application | 充气材料 Inflatable | ||
The above information is for reference only。
以上参数仅供参考。
