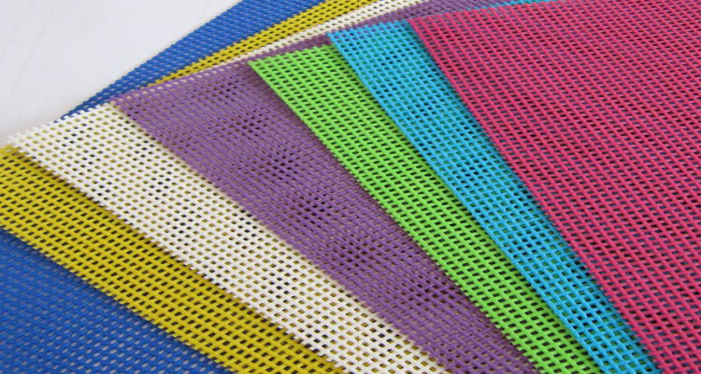

The light, stable weft inserted mesh and woven mesh fabrics is most convincing, when wind pressure loads need to be minimized. Mesh is printable with solvent base digital printing machines and also wind permeable. Furthermore, mesh for safety net, cushion underlines are more popular now. Width for dipped mesh in from 137CM up to 500CM.
M 1199 | M 1122 | Testing Method | |
|---|---|---|---|
门幅 Width | 137-500 cm 54-196.8 inch | 137-500 cm 54-196.8 inch | |
基布 Base Fabric | 100%PES 1100dtex 10*10 | 100%PES 1100dtex 14*14 | DIN EN ISO 2060 |
总克重 Composition Fabric | 270 g/m² 8 OZ/YD² | 305 g/m² 9 OZ/YD² | DIN EN ISO 2286-2 BS 3424 Method 5A |
基布克重 Composition Fabric
涂层克重 Composition Coating | 90 g/m² 2.8 OZ/YD²
180 g/m² 5.2 OZ/YD² | 110 g/m² 3.2 OZ/YD²
195 g/m² 5.8 OZ/YD² | DIN EN ISO 2286-2 BS 3424 Method 5B
DIN EN ISO 2286-2 BS 3424 Method 5B |
表处 Lacquering | PVC | PVC | |
抗拉强度（经向） Breaking Strength Warp
抗拉强度（纬向） Breaking Strength Weft | 1500N/5cm 330LBS/2inch
1500N/5cm 330LBS/2inch | 1500N/5cm 330LBS/2inch
1800N/5cm 400LBS/2inch | DIN 53 354 BS 3424 Method FS 5100
DIN 53 354 BS 3424 Method FS 5100 |
撕裂强度（经向） Tear Strength Warp
撕裂强度（纬向） Tear Strength Wef | 300N 100LBS
300N 100LBS | 300N 100LBS
300N 100LBS | DIN 53 363 BS 3424 Method FS 5134
DIN 53 363 BS 3424 Method FS 5134 |
剥离强度 Adhesion | --N/5cm --LBS/2inch | --N/5cm --LBS/2inch | DIN 53 357 BS 3424 Method 9B FS 5970 |
适用温度 Temperature Resistance | -30℃/+70℃ | -30℃/+70℃ | DIN EN 1876-2 BS 3424 Method 10 FS 5874 |
色牢度 Light Fastness | 7-8 | 7-8 | DIN EN ISO 877 BS 3424 Method 15 |
防火（需定制） Flammability | B1 M2 CL2 | B1 M2 CL2 | DIN 4102 NF P92-507 UNI 8456 8457 |
用途 Application | 广告喷绘材料、建筑安全网。 Banner & Construction Safety net. | ||
The above information is for reference only。
以上参数仅供参考。
